13.3 Inch Portable Monitor

Lightweight • Portable • Easy-to-Use

The perfect solution for on-the-go magnification!

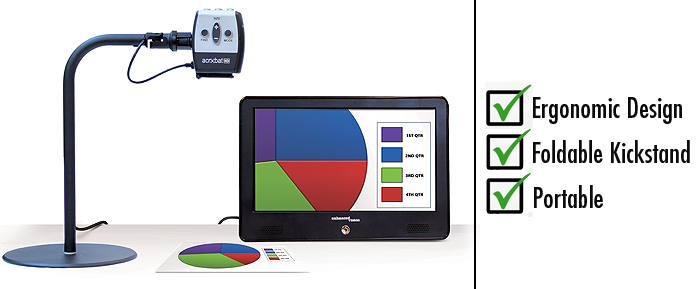

View full-color magnified HD images on a thin, lightweight, battery operated portable monitor. This generous 13.3” display weighs only 3.5 lbs. Easy to set up and ready to use with Enhanced Vision’s Acrobat HD Short and Long Arm, Transformer VGA/USB, Amigo or Max. A slim design allows you to slip this monitor into your backpack, briefcase or bag for effortless transport. One monitor – One magnifier – It’s that simple!

Compatible with Acrobat HD Short and Long Arm, Transformer VGA/USB, Amigo & Max!

Portable Monitor Features: LED-backlit 13.3”monitor 3.5 lb portable lightweight design 1366 X 768 screen resolution, displays HD images Ergonomic design with foldable kickstand featuring multiple positions Power on/off button with backlight Low battery indicator Rechargeable lithium ion battery – Operating time 5 to 10 hours (depending on product connected) Integrated battery charger Multiple video inputs: VGA, CVBS, and HDMI with audio 2 year warranty

Easily transport your lightweight 3.5 lb monitor between work, school or home.

Enjoy many hours of battery operating time and increase your productivity. Simply connect to a wall outlet for uninterrupted usage.

Your 13.3” monitor will display crisp, colorful, clear & vibrant images in high definition. View family pictures, textbooks, maps, charts, blackboards, presentations and so much more.

Features:

• Lightweight, portable design
• Built in 2x 1.5W Speakers
• Front Bezel power on/off button with integrated LED’s
• Integrated battery charger
• Ergonomic ID with foldable kickstand
• Multiple video inputs: VGA, CVBS, and HDMI with audio

Display:

• Type: 13.3” TFT active-matrix with LED-backlight
• Resolution: 1366 X 768 pixels (16:9)
• Contrast Ratio: 500:1 typ.
• Brightness: 250 cd/m2 typ.

Physical Dimensions:

~ 9.5”L x 13.5”W x 1.75” H (with stand closed)

Weight: ~ 3.5 lbs.

Environment:

• Operating Temperature: 32˚ – 122˚F (0˚ – 50˚C)
• Storage temperature: -4˚ – 140˚F (-20˚ – 60˚C)

Battery:

• Intergrated Li-Ion rechargeable battery

Estimated Charge times:

• ~up to 6 hours

Estimated Usage Times with fully charged battery:

• Up to 6 hours battery life when used with Acrobat
• ~ 500 + charge life cycles

Wall adapter:

• UL/CE rated
• Input: 100-240VAC 47/63Hz
• Output: 19VDC, 3.16A max load

Output from panel:

• 12 VDC

*To prevent condensation, do not use the unit for 1 hour after transporting the unit from extreme cold to room temperature.

**All times listed are approximate. Actual Charging and Usage times may vary

In the interest of continuous product improvement, specifications and/or minimum system requirements are subject to change without prior notice.
